工程師和產品規劃師應對當今的自動駕駛汽車復雜度就已十分艱難，而今后復雜度只增不減，他們又該如何應對？現代車輛通過高帶寬網絡以管理高級傳感器融合，通過車載計算機以運行人工智能算法，完成千兆級別的數據處理。各個模塊各司其職，而將這些不同模塊連接起來的就是線束。隨著功能的不斷增加，如今的汽車“線束”已經越堆越重，給廠商帶來高昂的成本和封裝挑戰。
事實上，高檔轎車和全尺寸卡車可能使用了 40 種不同的“線束”，搭載了超過 700 個連接器和 3000 條電線。給大家一個更直觀的數據，如果把汽車上的電線全部連起來，其長度可以超過2.5 英里（4 公里），重量也將達 132 磅（60 公斤）。而且，汽車所需的電線多種多樣，有時甚至?xí)玫礁哌_ 70 多種專用電線，包括同軸電纜、高速數據線和 USB 電線等。
事實上，上述數據還是在不包含“自動駕駛”相關設計下的測算結果。自動駕駛技術一旦部署，勢必會進一步增加汽車線束的規模、重量、成本和復雜程度。對于基于電動汽車平臺構建的自動駕駛汽車而言，更多的電子內容也會帶來嚴峻挑戰。對此，工程師可以從汽車架構層面和線束層面采用不同策略進行應對。
汽車制造商正在研究新的電子電氣架構，從而通過簡化線路設計，最大程度地降低成本和重量。此類設計可以減少支持各類車輛功能所需的布線，并有機會降低重量、便利自動化生產，從而降低成本。此外，在OEM中已經興起了整合電子組件的趨勢，比如將 ECU 和傳感器模塊整合起來，從高度分布式結構向集中式結構轉型。這種架構整合有助于精簡物料清單（BoM），并直接簡化線路的復雜性。
隨著汽車制造商開始向車輛嵌入功能強勁的集成電路（IC）和微處理器，ECU 整合已經成為一種流行趨勢。如今，芯片的運算能力大幅增強，一個單元已足以承擔過去多個單元才能完成的任務。這樣一來，車輛架構整合的趨勢愈發明顯，各類強大的域控制器將借助傳感器融合和人工智能算法，首先對傳感器數據進行預處理，而后再將其發送至車輛的中央處理單元。
然而，架構整合不能過度。如果所有汽車功能均僅有 1 或 2 個控制單元全權負責，則勢必產生大量布線需求，將分布在車輛各處的所有組件連接起來。OEM將需要執行大量分析，從而在分布式和集中式功能管理之間達到最佳平衡。
OEM和一級制造商也在積極尋求新型線材，從而達到降低線束重量的目標。舉個例子，業內已經推出了一款橫截面積只有 0.13 平方毫米的新型超細電線。遺憾的是，雖然有了超細電線，但電線兩端的連接器配套卻仍跟不上，因此這種超細電線很難在市場上進行大規模推廣。鋁質電線的情況也一樣，純鋁材質太脆，因此無法做到太細。如今，相關供應商均在開發適合極細電路的終端連接器材料，比如鋁合金。一時間，市場上的合金材料也形形色色，而且絕大多數情況無法相互兼容。這意味著，如果使用任何一種電線，整輛車都需要使用同一家供應商的連接器，這并不現實。
新型特種電纜的出現也可以進一步縮小線束直徑，并降低線束重量和成本。未來，車輛上的數據密集型傳感器和顯示器的數量只會繼續增加。因此，通過標準化線路傳輸視頻和其他數據豐富的信號愈發重要。另一個思路是，在多種設備同時接入的大背景之下，通過線路復用將多路信號部署在同一條共用專用電纜上，這也可以達到降低重量、成本、電線直徑的效果。
除了架構和線束層面的優化外，在開發過程中采用電子電氣軟件解決方案也至關重要。我們需要使用軟件工具來進行快速權衡分析，以優化模塊安裝位置，并識別可以進行集成的模塊，從而節省重量、成本或降低復雜度。也就是說，軟件工具可以快速分析改變?nèi)魏尾季挚赡軒淼挠绊?，幫助工程師選擇出最優系統架構。
此外，最先進的電子電氣工程解決方案還可以在整個線束開發過程中保證數據的連續性，與其他工程軟件和自動化設計軟件完美兼容。比如，Mentor 公司的 Capital 軟件套件即可支持車輛等大型平臺進行電氣系統工程設計，幫助OEM成功完成哪怕最復雜的車輛線束設計。
數據連續性可確保工程師在電子電氣架構和線束開發的各個階段均可以訪問最新的準確信息，即通過為車輛架構和線束創建一個數字化“副本”，以避免手動交換數據的需求。這樣一來，工程師可以通過自動數據交換，避免手動數據交換和重復輸入可能產生的錯誤，從而實現更有效的協作。此外，由于具備與其他領域軟件（比如機械設計工具和產品周期管理解決方案）進行集成的能力，該解決方案還可以便利跨工程領域的協作和自動數據交換。
自動化功能可幫助工程師進一步優化車輛架構和線束。綜合線路設計可以將系統連接性信息（例如設備和信號類型）與物理線束限制相結合，從而在車輛范圍內生成最優的線路布局和連接方式。如今的綜合線路設計工具支持復雜的電線類型、豐富的屏蔽材料選擇、多種網絡協議，甚至可以自動創建接地點。
最后，結構性優化和系統級改變也會對電子電氣和汽車線束帶來廣泛影響。此外，這種方法還允許在工程和制造的任何環節啟動變更流程，從而讓持續優化成為一種常態。值得注意的是，最重要的是要在項目的早期階段引入結構性的變更管理規范。
先進的電子電氣工程軟件是一套非常優雅的解決方案。借助于變更控制機制，這套軟件的內置設備數據庫功能得到了極大的增強，可以判斷特定設計數據的負責人，并提示變更的開展方向。
通過這些增強特性，該數據庫可以立即提供自動化、結構化的變更管理程序。
電氣化進程的推進和自動駕駛的到來將給車輛的線束布局帶來更多負擔。OEM在緊跟趨勢之余必須考慮新增任何功能可能帶來的復雜度，因為這將給線束重量、直徑和成本帶來顯著的直接影響。
現代線束設計和工程工具可以解決隨汽車創新而來的問題。這些解決方案的自動化程度非常高，支持多種先進指標，還具有分析能力，可以幫助工程師克服這些挑戰。此外，此類解決方案還可以幫助設計人員更好地進行取舍，從而在線束材料、元件放置和布線之間做出最佳平衡，并最終最小化線束重量、成本及直徑。
然后，該解決方案可以根據設備型號、信號位置及車輛的物理限制，自動生成最佳布線設計。隨著電子電氣架構和線束的發展，全面的變更管理設施和強大的數字“副本”可確保各大工程領域之間實現的信息實時同步。車輛自動化、電氣化和連接性將更加接近主流，這些技術將逐步推動汽車工程從機械系統向電子電氣系統轉型。
為了推出強大、可靠且經濟高效的車輛平臺，采用先進的電子電氣工程軟件解決方案至關重要。
Engineers and product planners are already grappling with the complexity of autonomous vehicles (AVs), with the prospect of complexity increasing. Every second, AVs manage advanced-sensor fusion via high-bandwidth networks, while onboard computers run AI algorithms to process gigabits of data. Connecting it all is the wiring harness, which has become increasingly heavy, more expensive and more difficult to package within the vehicle.
Premium-segment cars and full-size trucks can contain 40 different harnesses comprised of 700 connectors and more than 3,000 wires. Stretched in a continuous line, these wires would span 2. 5 mi (4 km) and weigh approximately 132 lb. (60 kg). In addition, there can be more than 70 specialty cables that include coax, high-speed data and USB runs.
This does not encompass the added AV sensors and processing content that will further expand harness size, mass, complexity and cost. The implications of escalating electronic content are a significant issue for AVs built on electric-vehicle (EV) platforms. Engineers can undertake several strategies at the architectural and harness-level to resolve this dilemma.
Architectural optimizations
Automakers are investigating new electronic/electrical (E/E) architectures that will simplify the harness design to minimize cost and weight. Such designs can reduce the wiring needed to support vehicle functionality and offer an opportunity to reduce mass while making automated production easier, driving down cost. And OEMs have begun consolidating electronic components, such as ECUs and sensor modules, moving from highly distributed to increasingly centralized architectures. The architectural consolidation is driving reduced bills-of-material (BoM), which directly impacts harness complexity.
ECU consolidation has become a popular strategy as automakers integrate more powerful integrated circuits (IC) and microprocessors into their vehicles. The increased computational capabilities of these chips enables a single box to manage tasks that used to require multiple units. As a result, vehicle architectures are converging with powerful domain controller units using sensor fusion and artificial intelligence algorithms to pre-process sensor data before sending it to a centralized processing unit.
However, there is a balance to be struck with consolidation. An architecture that features only one or two control units managing all vehicle functions will require an immense amount of wiring to connect with all the components that are necessarily distributed around the vehicle. OEMs will need to perform dozens of analyses to determine the optimal balance between distribution and centralization for harness functionality.
OEMs and Tier 1s also are developing technologies that directly reduce harness weight through smaller wires and new materials. Ultra-thin-diameter wiring (0.13 mm2) is a notable example. Unfortunately, the industry still is struggling to develop sufficient terminal substitutions for all currently existing terminals that can crimp to such a small diameter. The available products on the market currently do not support a large-scale migration to ultra-small diameter wiring. The same applies to aluminum wiring. For small diameter wiring, pure aluminum is too brittle and thus not a feasible option. Terminal suppliers are developing optimal aluminum alloys for the specifications of their terminals. This has led to a multitude of different alloys on the market that, in most cases, are incompatible with other suppliers’ terminals. To use these wires, a vehicle would have to use one supplier’s connectors across the full vehicle, which is not realistic.
Finding alternatives to specialty cables will further reduce weight/cost and bundle diameters of harnesses. The number of data-intense sensors and displays will only increase in the future, making it crucial to develop solutions to transmit video and other data-rich signals via standardized wiring. Alternatively, finding ways to multiplex signals onto a single shared specialty cable while multiple devices tap in will have the same effect: reducing weight/cost/bundle diameters.
Leveraging digitalization
In concert with architectural and harness optimizations, adopting E/E software solutions to support development flow will be crucial. Software solutions need to enable rapid tradeoff studies to optimize module locations and identify any module that can be combined to save weight/cost/complexity. With the ability to compare and analyze layouts for their impact, engineers will be able to choose the optimal system architecture.
Additionally, the most advanced E/E engineering solutions support data continuity throughout harness development, integrate with other engineering software and automate design tasks. An example is Mentor’s Capital software suite that enables the engineering of electrical systems for large platforms such as vehicles. Such capabilities will help OEMs to design harnesses for even the most sophisticated vehicles.
Data continuity ensures that engineers at all stages of E/E architecture and harness development have access to accurate and up-to-date information. This replaces manual data exchange with a robust digital twin of the vehicle architecture and wiring harnesses. As a result, engineers can collaborate more effectively through automated data exchanges that remove errors from manual data exchange and reentry. Likewise, integrations with software from other domains, such as mechanical design tools and product lifecycle management solutions, facilitate collaboration and automated data exchanges across engineering domains.
Automation capabilities help engineers further optimize vehicle architectures and wiring harnesses. Wiring synthesis combines system connectivity information, such as device and signal types, with the physical harness constraints to generate optimized wiring and splices within the context of the vehicle. Today’s wiring synthesis tools support complex wiring types, multiple shielding materials, various network protocols and can even automatically create ground points.
Finally, ongoing architectural optimizations and system-level changes can have wide-ranging effects on the E/E system and wiring harness. In addition, changes can be initiated throughout the engineering and manufacturing processes, driving constant redesign efforts. It is extremely important to develop a structured and disciplined approach to change management early on in the project.
Advanced E/E engineering software can provide an elegant solution. Integrated device databases can be enhanced with change-control mechanisms to determine ownership over design data and the direction in which certain changes should flow.
With these enhancements, this database will immediately provide automated and structured change-management procedures.
New challenges, new solutions
The move to electrification and AV driving places additional burdens on the wiring harness. As OEMs pursue these trends, they must consider the number and sophistication of technology features they integrate into vehicles, as they have a direct effect on wiring harness weight/diameter/cost.
Modern harness design and engineering tools provide a solution to problems wrought by automotive innovation. By leveraging engineering solutions with high levels of automation, advanced metrics and analytical capabilities, engineers can overcome these challenges. Such solutions enable tradeoff studies to optimize harness materials, component placement and routing for minimal harness weight/cost/diameter.
Design automation then can generate optimal wiring based on device and signal location, and the physical constraints of the vehicle. As the development of the E/E architecture and wiring harness progresses, comprehensive change-management facilities and a robust digital twin ensure that the various engineering domains remain in step with all needed information. Vehicle automation, electrification and connectivity are coming closer to mainstream reality. These technologies will progressively shift the emphasis in automotive engineering from mechanical systems to E/E architecture.
The resulting capabilities provided by an advanced E/E engineering software solution will be critical to delivering a robust, reliable and cost-effective vehicle platform.
Engineer Dan Scott is Integrated Electrical Systems market director at Mentor, A Siemens Business. Ulrike Hoff is an independent automotive wiring consultant.
Author: Dan Scott & Ulrike Hoff
Source: SAE Automotive Engineering Magazine
隨著OEM開始將自動駕駛等越來越多的新功能集成至車輛產品中，車輛線束設計將面臨更大的尺寸、復雜性、成本和重量挑戰。
自動駕駛依靠強大而密集的傳感器和計算機網絡來檢測不斷變化的駕駛場景，并對其做出反應。

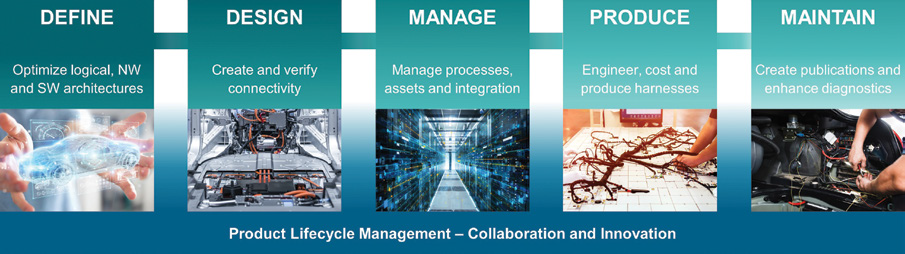

自動化的數據傳輸可以簡化域與域之間的交互，從而減少線束設計中的錯誤。

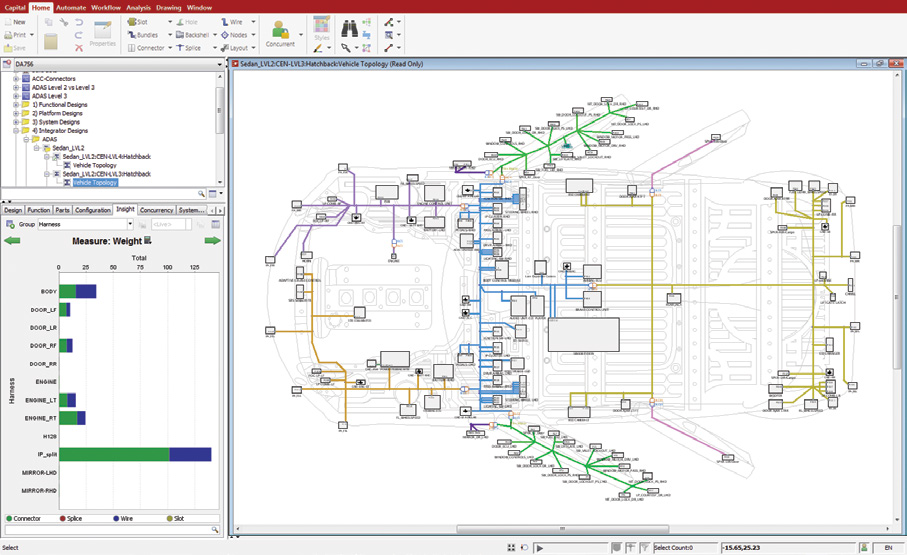

Capital軟件套件可以幫助工程師在成本、重量和尺寸指標之間進行權衡，從而達到最優線束設計。
