如果W.O.賓利先生得知以他的名字命名的公司正在生產號稱“世上最快、最強大、最奢華、最高端的SUV”，他一定會非常感興趣。除了最初的汽油車版本，全新的賓利Bentayga還在2015年法蘭克福車展上向公眾展示了這一車型的柴油車版和插電式混合動力車版，并且，這兩個版本都已“列入生產日程表”。
在勒芒耐力賽上，在世界上最尊貴的展廳中，賓利先生都曾見證過他的愛車閃亮登場，大獲成功。這些作品是技術（增壓跑車）與超高端造型和內室的完美結合?，F(xiàn)在，一臺搭載6.0-L 447-kW (600-hp)的W12發動機的四輪驅動Bentayga正在沙丘中馳騁，在凍湖上競速。
Bentayga經歷了超過100萬英里（160萬公里）的測試。“測試內容極為詳盡，”賓利整車工程主管Cameron Paterson表示。“無論做了多少實驗室測試，都仍需要讓車輛接受各種條件的室外測試。我們的室外測試溫度最低為零下30攝氏度，最高達到53攝氏度（-22至+127華氏度），盡管許多客戶并不會真的把車開到沙丘里去，我們還是設置了如此高的溫度！此外，我們還在一些封閉的測試道路上完成了高速耐久性測試，其中包括長時段。最高速度（301 km/h）的沖刺測試。”
Bentayga最初在2012年以SUV概念車的形式亮相，但公眾反應平平，因此該車型隨后進行了大幅度的造型修改。最終成品帶有許多賓利車的標志性元素，以適應該車型富有的潛在顧客相對保守的口味。
Bentayga屬于在全球剛剛興起的頂級高端SUV，同樣屬于這一級別的還有蘭博基尼（與賓利同為大眾旗下品牌）和勞斯萊斯，這些品牌的生產成本與高端形象，讓其他高級SUV相形見絀。
賓利工程主管Rolf Frech在談?wù)揃entayga時表示：“這輛車定義了賓利的未來。通過它，我們?cè)诎l(fā)動機、底盤和電子系統等領域都跨出了一大步。”這些都是未來賓利車型的技術風向標。
Bentayga的車身為大眾集團定制的MLB-EVO架構，主要材料為鋁合金。該架構曾被用于制作奧迪Q7的車身，還將用于大眾的其他車型，其中包括下一代保時捷卡宴。汽車整備質量為2422 kg (5340 lb)，其中復合材料的使用減輕了236 kg (520 lb)的重量。
Bentayga總長為5141-mm (202.4-in)，寬度1998-mm (78.7-in)，高度1742-mm (68.6-in)，軸距為2992-mm (117.8-in)。
48V系統
Bentayga產品線總監Peter Guest表示：“這款車的底盤（懸架包括一個有四個雙叉骨的前懸架、梯形多連桿后懸架、自調平空氣系統和連續緩沖控制裝置）是一個從零開始打造的全新產品，其中有一個非常新穎的主動滾動控制裝置。”該裝置使用了一個48V的系統來提供“安靜的瞬時反應，以及應對所有路面所需的駕駛員手動操控性能。”
這輛全新的SUV采用賓利的動態駕乘（Dynamic Ride）技術。賓利將傳統的防滾桿視作一種在車身控制與駕駛員舒適度之間的平衡手段。但賓利的主動和反應系統卻可以提供可變的抗扭強度，因此Bentayga“既可以保持極高的動態駕駛性能，也可以讓所有乘員在任何時候感到舒適。”
車輪的標準尺寸為20寸，客戶也可選配21寸或22寸，輪胎由倍耐力提供。前后制動器均使用通風鐵質制動盤，前制動盤尺寸400-mm (15.7-in)，后制動盤為380-mm (15.0-in)。
與目前使用的W12傳動系統相比，這個“專為Bentayga打造”的英國制發動機效率高了11.9%，尺寸更短，重量也輕了30 kg (66 lb)左右。發動機為縱向安裝，同時使用直噴與非直噴模式，兩種模式的轉換取決于行駛中對功率或扭矩的要求。
發動機設計部經理Ian Malpas稱，他們打造的渦輪增壓器能夠盡可能縮地短反應時間：“轉速?gòu)?250升至4500rpm時，扭矩為900 N·m，功率輸出447 kW，這意味著B(niǎo)entayg擁有SUV中性能最高的發動機。而且它的排氣也是可變式的；左邊氣缸組的進氣閥、排氣閥、燃料和點火都可以關閉，好讓右氣缸組的運行更高效。”
這些技術共同成就了292 g/km的二氧化碳排放值，以及12.8 L/100 km（歐盟循環）和16 mpg（美國環保署EPA循環）的綜合燃油消耗量——這些數據都符合該車型級別的認證標準。
Bentayga的變速箱為ZF八速自動變速箱。在第5至第8檔位上，如果油門壓力足夠輕，那么扭矩轉換器就會啟動，讓發動機進入怠速狀態以提高效率，大眾將該狀態稱為“航行”狀態。當車輛偵測到下坡或當油門開啟時，齒輪將重新嚙合。此外，Bentayga的全輪驅動系統也得到了改善，可以更好地配好高扭矩和非公路駕駛情形。
Bentayga的百公里加速時間為4.1秒。
電子駕駛輔助功能包括傳統的穩定性、牽引力、下坡控制和泊車輔助等。
Bentayga產品線主管Peter Guest補充到：“這輛車還安裝了一系列傳感器，可以提供實時環境信息。它們可以幫助車輛停車、保持車道、在低速路況中避免事故等。車上還安裝了一個帶有紅外攝像頭的夜視系統，車內顯示屏上可以顯示出前大燈范圍之外的潛在危險，如路上的行人和動物等。”
內幕
與大多數車輛不同的是，新賓利用內飾來定義它的地位。
定制賓利車提供商Mulliner Operations的主管Geoff Dowding做出如下解釋：“在研發階段，我們?cè)c500名客戶進行了一對一交談。他們每個人想法都很不一樣，而且都想在Bentayga身上得到屬于自己的體驗。因此，我們不僅有提高駕駛體驗的技術，我們還能推出一整套適合不同生活方式的功能。”
Bentayga的內飾面由賓利工匠手工制作，并有七種選擇。儀表板上醒目的賓利翅膀標志，是用手工制成的金屬工具雕刻而成的。有些控制按鍵甚至還有滾花。
前方座椅有22種調節方式和6種按摩程度。所有座椅都是由來自歐洲寒冷地帶的“頂級牛皮革”制作而成。另有一個七座版可供客戶選擇。
車上裝有平視顯示儀和一個全新的8英寸觸屏，在其背后是一個控制著車內主要功能的60GB硬盤。后座有一個遠程觸屏，可用來控制座椅、空調和其他功能。賓利娛樂平板（Bentley Entertainment Tablet）是一塊可拆卸的10.2英寸安卓平板電腦，可支持4G、WiFi和藍牙。
全新的音響系統中包含一臺功率幾乎高達1950 W的設備。
帶有聲學夾層玻璃的敞開式全景天窗占據車頂60%的面積，而且這是該車型的標配之一。賓利形容道：“各個部分之間的間隙都經過了一絲不茍的修整。”
到2016年上旬上市之時，賓利將提供針對6種風格的規格套餐，其中包括2種車身造型。除此之外，Bentayga還配備了賓利史上最全面的配件，如負重助力托盤和濕式齒輪裝載等。
和賓利的所有車型一樣，Mulliner 還能為Bentayga提供更多的定制化服務，如定制的“百年靈Mulliner陀飛輪”機械鐘，由一個專用的車內高精度裝置定期敲響。這只鐘以純金打造，鐘面有珍珠母和黑烏木兩種選擇，上面鑲嵌鉆石。
這才是真正的奢華。
作者：Stuart Birch
來源：SAE《汽車工程雜志》
翻譯：SAE 上海辦公室
Bentley takes SUV to super premium level
W. O. Bentley would have been intrigued and certainly impressed that the company bearing his name is producing what it claims as the “fastest, most powerful, most luxurious, and most exclusive SUV in the world.” In addition to the initial gasoline version, diesel and plug-in hybrids of the new Bentley Bentayga, getting its first public viewing at the 2015 Frankfurt Motor Show, are also on the “to do” list.
He saw his cars achieve success both at Le Mans and in the world’s most prestigious showrooms, mixing technology (supercharged sports cars) and ultra-premium styling with cabin ambience. Now, the W12 6.0-L 447-kW (600-hp) all-wheel drive 301-km/h (187-mph) Bentayga adds the ability to blast a Bentley across sand dunes and race over frozen lakes.
The Bentayga was tested over more than 1 million mi (1.6 million km). “Testing has been extremely thorough,” said Cameron Paterson, Bentley’s Director of Whole Vehicle Engineering. “However much chamber testing is done, you can’t beat taking the car out and testing it properly under a very wide variety of conditions: for us, -30° to over +53°C (-22° to over +127°F), [though not a lot of our] customers will drive this car in sand dunes! We also completed a high-speed durability course on closed test tracks including at top speed (301 km/h) for extended periods.”
First seen as an SUV concept in 2012, but extensively aesthetically changed after a “so-so” general reaction, the production car carries strong styling cues of its siblings to better meet the relatively conservative tastes of its moneyed potential buyers.
The Bentayga enters the top level of the globally burgeoning premium SUV sector that will see offerings from Lamborghini (like Bentley a Volkswagen Group company) and Rolls-Royce, that in terms of cost and its associated image projection, will overshadow SUVs that currently carry a premium label.
Rolf Frech, Bentley’s Engineering Director, said of the Bentayga: “It defines the future for Bentley. With this car, we take big, big steps on the engine, the chassis, the electronics.” It will put down the markers for the technology of all future Bentley models.
The car is aluminum-intensive and has a bespoke version of the VW Group’s MLB-EVO architecture, that has already been applied to the Audi Q7 and will be used for other VW Group models, including the next generation Porsche Cayenne. Curb weight is 2422 kg (5340 lb), Bentley estimating weight savings via use of composite materials to be 236 kg (520 lb).
Dimensions include a 5141-mm (202.4-in) length, 1998-mm (78.7-in) width, 1742-mm (68.6-in) height, and 2992-mm (117.8-in) wheelbase.
48-V system
Peter Guest, Product Line Director for Bentayga, stated: “The chassis (suspension includes four double wishbones front; trapezoidal multi-link rear, self-leveling air system, Continuous Damping Control) is all new from ground up, and includes a very innovative active roll control.” This uses a 48-V system to provide “silent, instantaneous responses and sufficient power on hand to deal with all road surfaces."
The new SUV introduces Bentley Dynamic Ride. The company regards use of conventional anti-roll bars as a compromise between body control and comfort. But Bentley’s adaptive and reactive system provides variable torsional resistance to allow the Bentayga to be "both dynamically capable and comfortable for all occupants at all times.”
Wheels are 20 in standard, 21 or 22 in optional, fitted with Pirelli tires. Brakes are 400-mm (15.7-in) ventilated iron discs front, 380-mm (15.0-in) ventilated iron rear.
The UK-built engine, described as having been “specifically designed” for the car, delivers an 11.9% efficiency improvement, is shorter, and about 30 kg (66 lb) lighter compared to the existing W12 powertrain. It is positioned longitudinally, and it uses both direct and indirect fuel injection, switching between them depending on power or torque requirements.
Ian Malpas, Functional Manager, Engine Design, explained that turbos have been engineered to minimize response time: “There is 900 N·m of torque from 1250 to 4500 rpm and 447 kW output to make this the highest performing engine in any SUV. It has variable displacement; intake and exhaust valves, fuel, and ignition are switched off on the left-hand cylinder bank to enable the right-hand bank to run in a far more efficient operational mode.”
All this helps towards a 292 g/km CO2 figure and combined fuel consumption of 12.8 L/100 km (EU cycle) and 16 mpg (combined, U.S. EPA cycle)—both numbers subject to type approval.
The transmission is a ZF eight-speed automatic. In 5th to 8th gear, when pressure on the accelerator pedal eases sufficiently, the torque converter is opened, facilitating the engine to idle, creating what the VW Group terms “sailing” for improved efficiency. It re-engages if the car detects a road downgrade or if the throttle is opened. The car’s AWD system has been strengthened to better cope with the high torque figure and off-road driving.
Performance figures include a 0-100 km/h (0-62 mph) time of 4.1 s.
Electronic driver-assist features include the typical stability, traction, and hill-descent control and park assist.
Peter Guest, Bentayga Product Line Director, added: “The car has an array of sensors to provide real-time information about the environment it is in. It can park, stay in lane, avoid accidents in low-speed traffic. It also has a night vision system with infrared camera that displays on a cabin screen hazards that are beyond the range of the headlights, such as pedestrians and animals in the road.”
Inside story
More than most other cars, it is the interior that defines the new Bentley’s status.
Geoff Dowding, Director, of Mulliner Operations (which focuses on delivering bespoke and coach-built Bentleys), explained: “During development we spoke to over 500 customers on a one-to-one basis. What we learned from that is that they are all very different individuals who all want an individual type of experience with the Bentayga. So we have technologies that enhance the driving experience, and a whole suite of features which enable different lifestyles.”
The car has hand-selected veneers (a choice of seven) shaped by Bentley’s artisans. The dashboard, which takes Bentley’s wing motif as its visual cue, is highly polished with hand-crafted metal elements. Some controls are knurled.
Front seats have 22-way adjustment and six-program massage. All seats are of “finest bull hides” sourced from cool European climates. A seven-seat variant is planned.
The car has head-up display and a new 8-in touchscreen controlling a 60-GB hard drive that controls the major functions in the vehicle. In the rear is a touch screen remote that can control seats, air conditioning, and many other features. The Bentley Entertainment Tablet provides a removable 10.2-in Android device with 4G, WiFi, and Bluetooth.
New levels of sound system include one with almost 1950 W of power.
An opening panoramic glass roof with acoustic interlays, covering about 60% of the roof area, is standard. The company speaks of “meticulous tolerances between elements of trim.
Six lifestyle-orientated specification packages will be available when the car goes on sale early in 2016, including two styling packs. In addition to these options, the Bentayga is available with the widest range of lifestyle accessories ever offered by Bentley brand, such as the load-assist tray and wet-gear stowage.
As with all Bentleys, the Bentayga can also be given added individuality by craftspeople at Mulliner. A bespoke mechanical “Mulliner Tourbillon by Breitling” clock can be specified, automatically wound periodically by a dedicated high-precision mechanism within the car. It is machined in solid gold, with a choice of either mother-of-pearl or black ebony face and decorated with diamonds.
That really is premium.
Author: Stuart Birch
Source: SAE Automotive Engineering Magazine
這是的全輪驅動新車型Bentayga所使用的6.0-L V12發動機，盡管在賓利車上并不常見，但這個技術與奢華完美結合的發動機可是助力Bentayga登上奢華SUV市場頂峰的王牌。

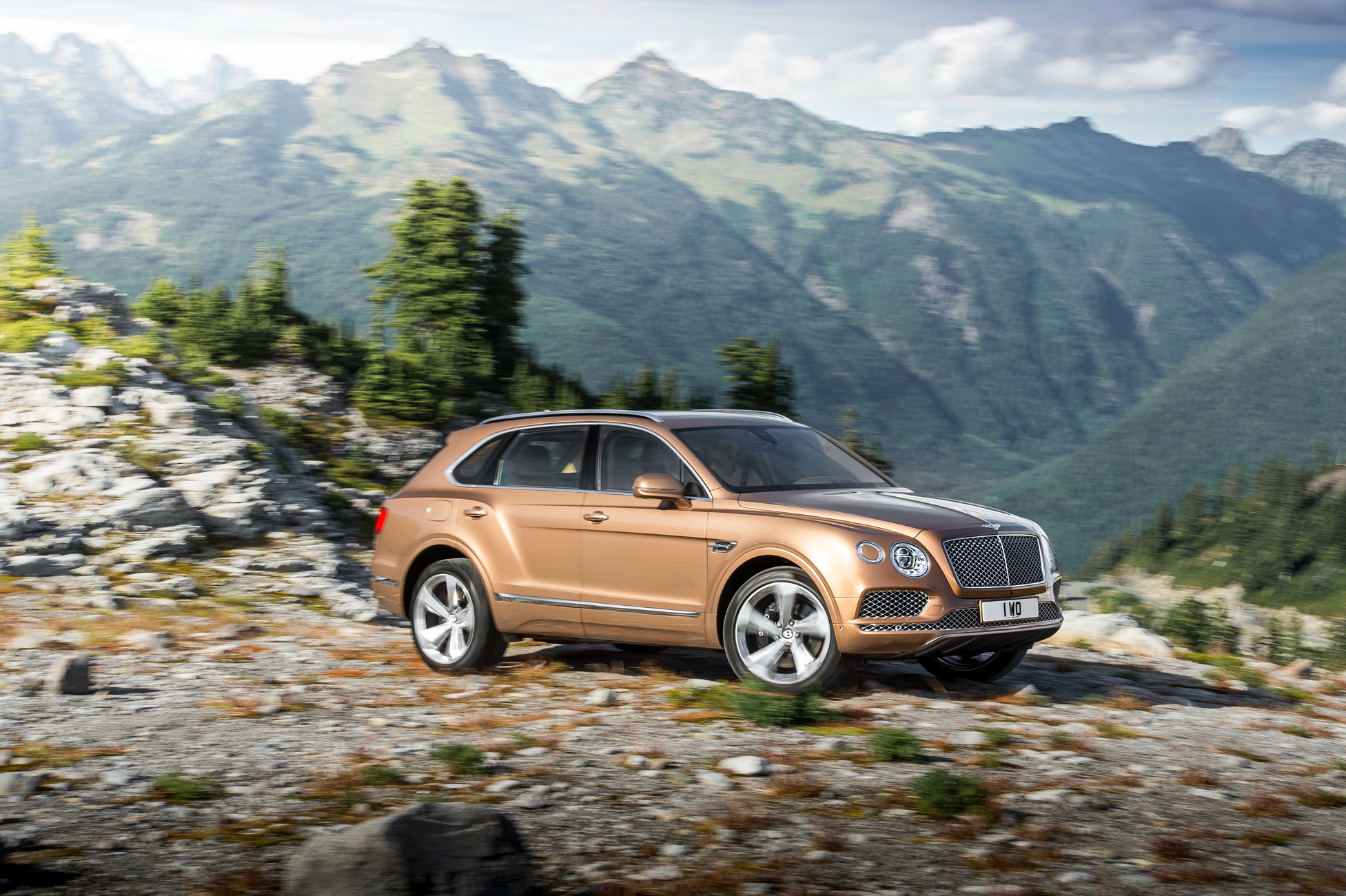

與2012年日內瓦車展上的EXP 9 F 概念車相比，2016年的Bentayga在造型上更為溫和。

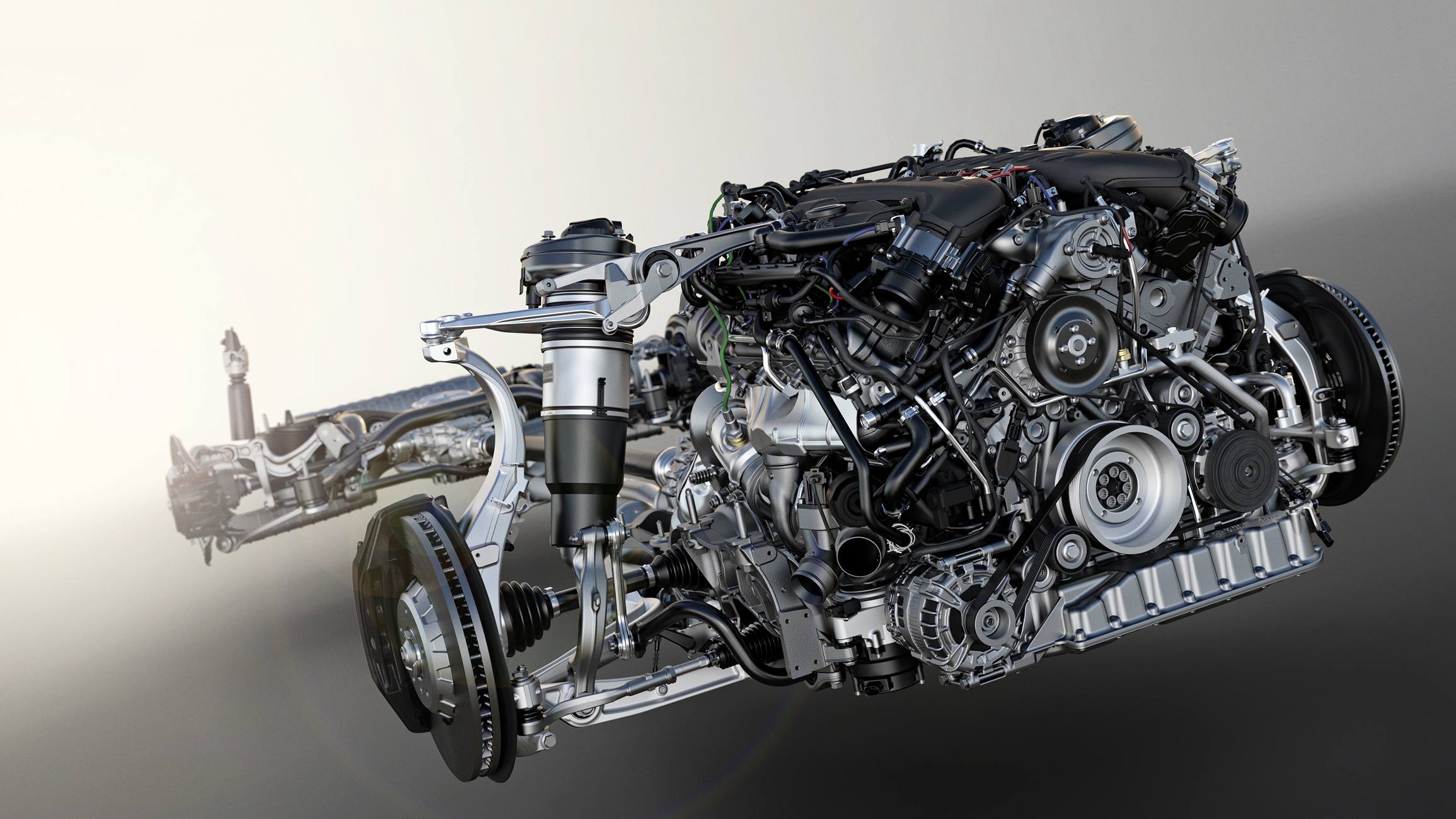

扭矩可達900 N·m 的全新W12發動機比舊版W12更輕便、更緊湊。

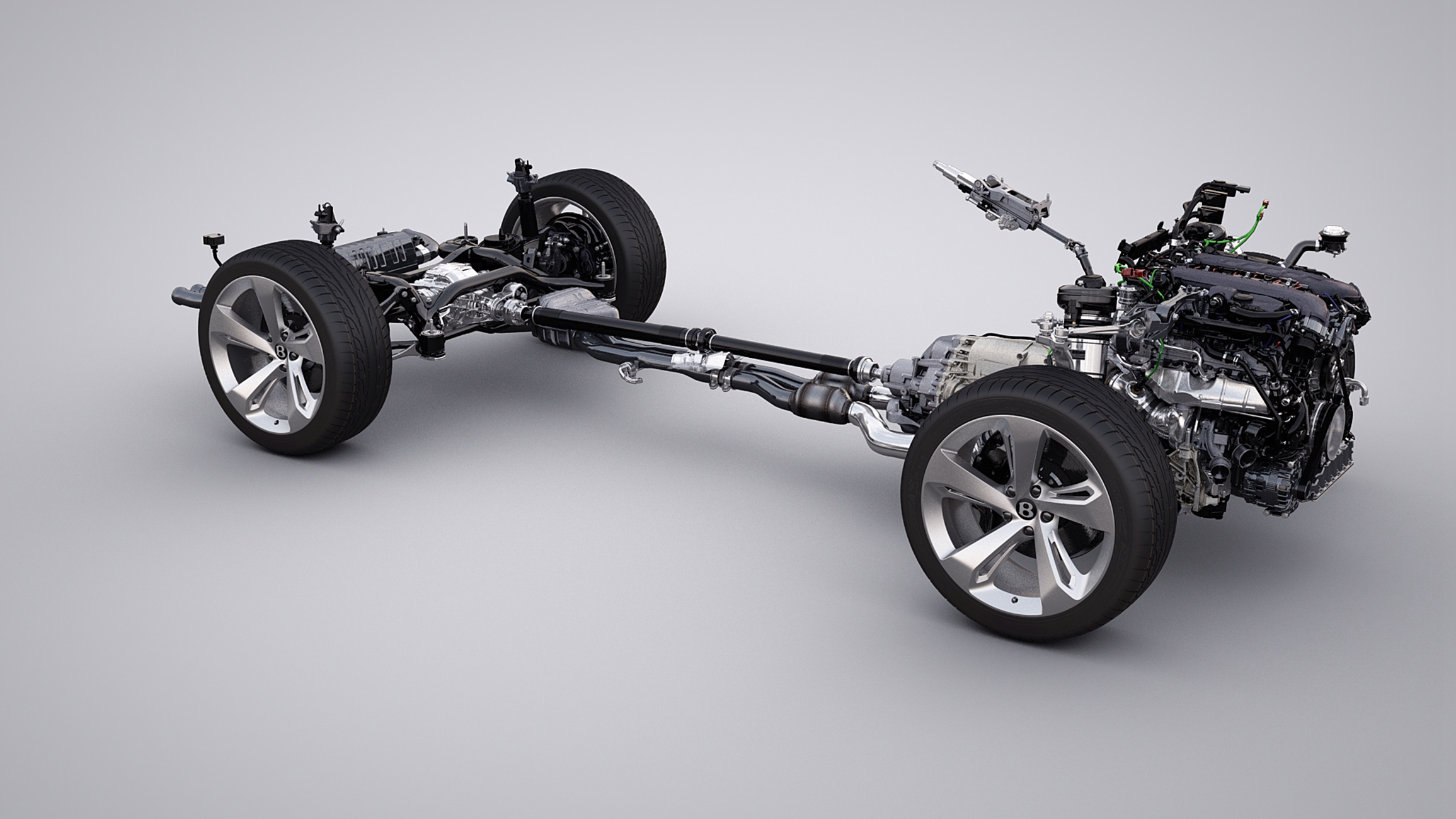

大眾集團的MLB-EVO架構用于制成Bentayga的高強度鋁合金車身。

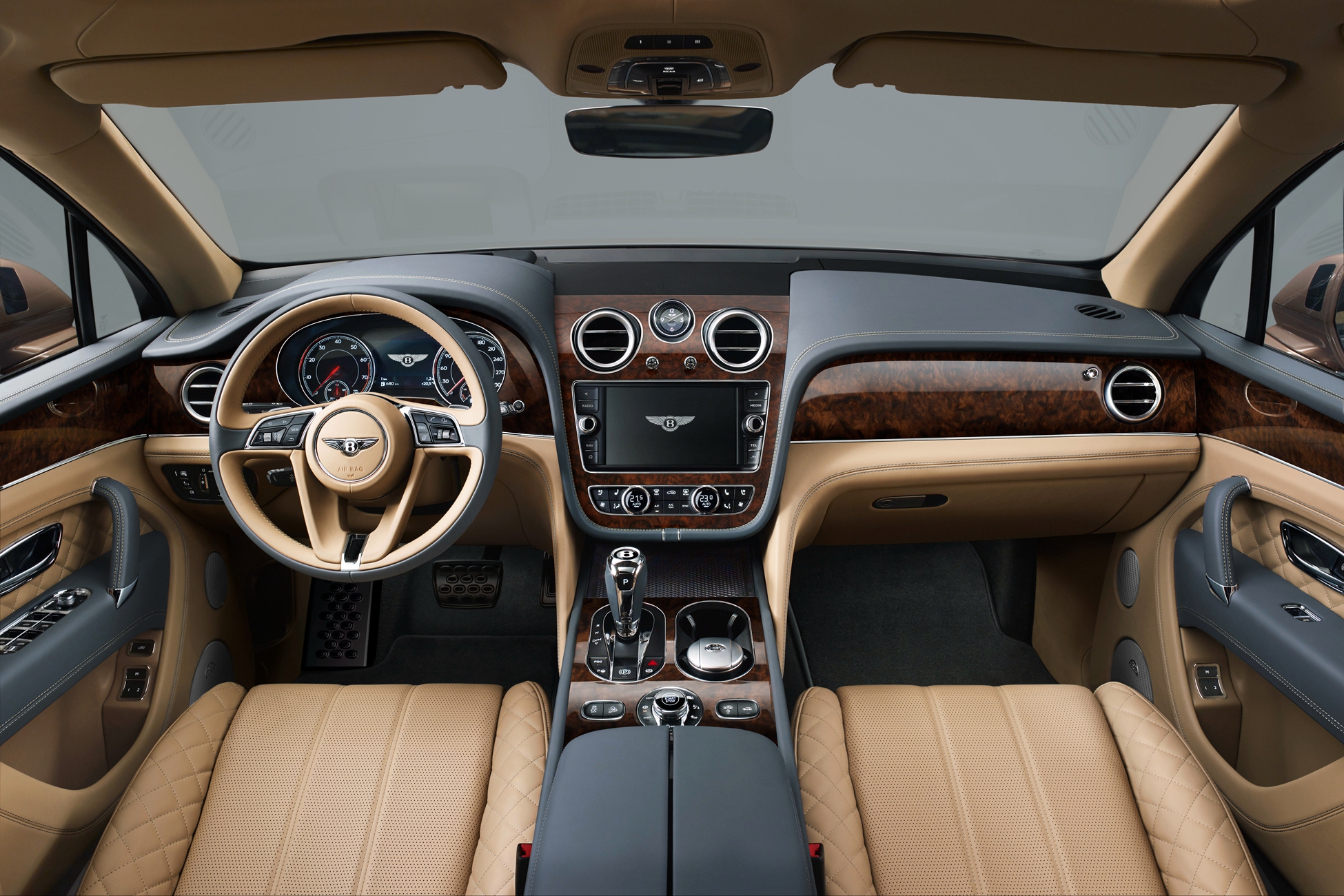

Bentayga的內飾采用了傳統的超豪華材料，其中包括人工選擇的飾面。

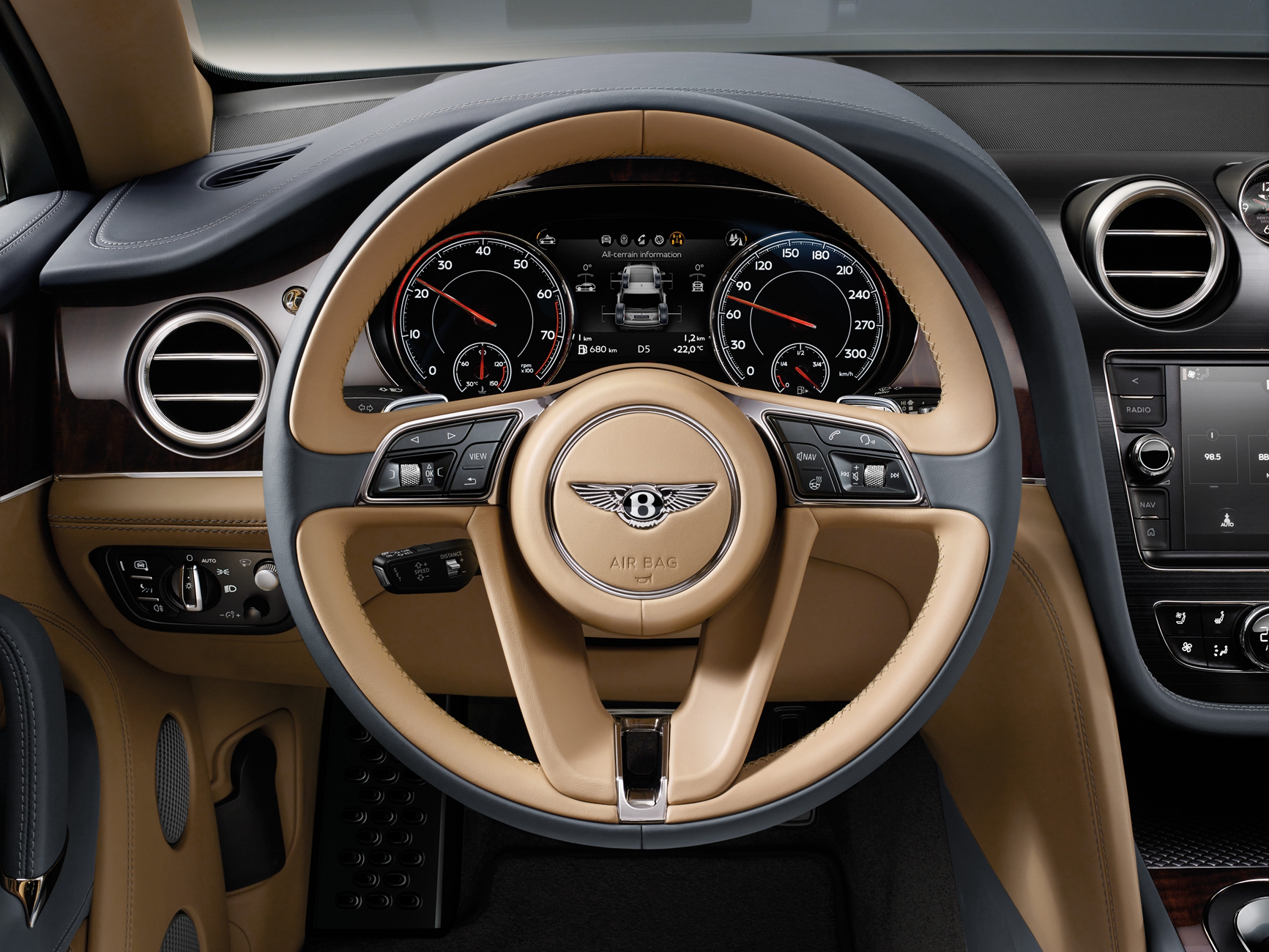

Bentayga的駕駛員只需撥動轉盤就能在8個檔位和非公路反應設置中進行選擇，以應對各種各樣的路面和路況。

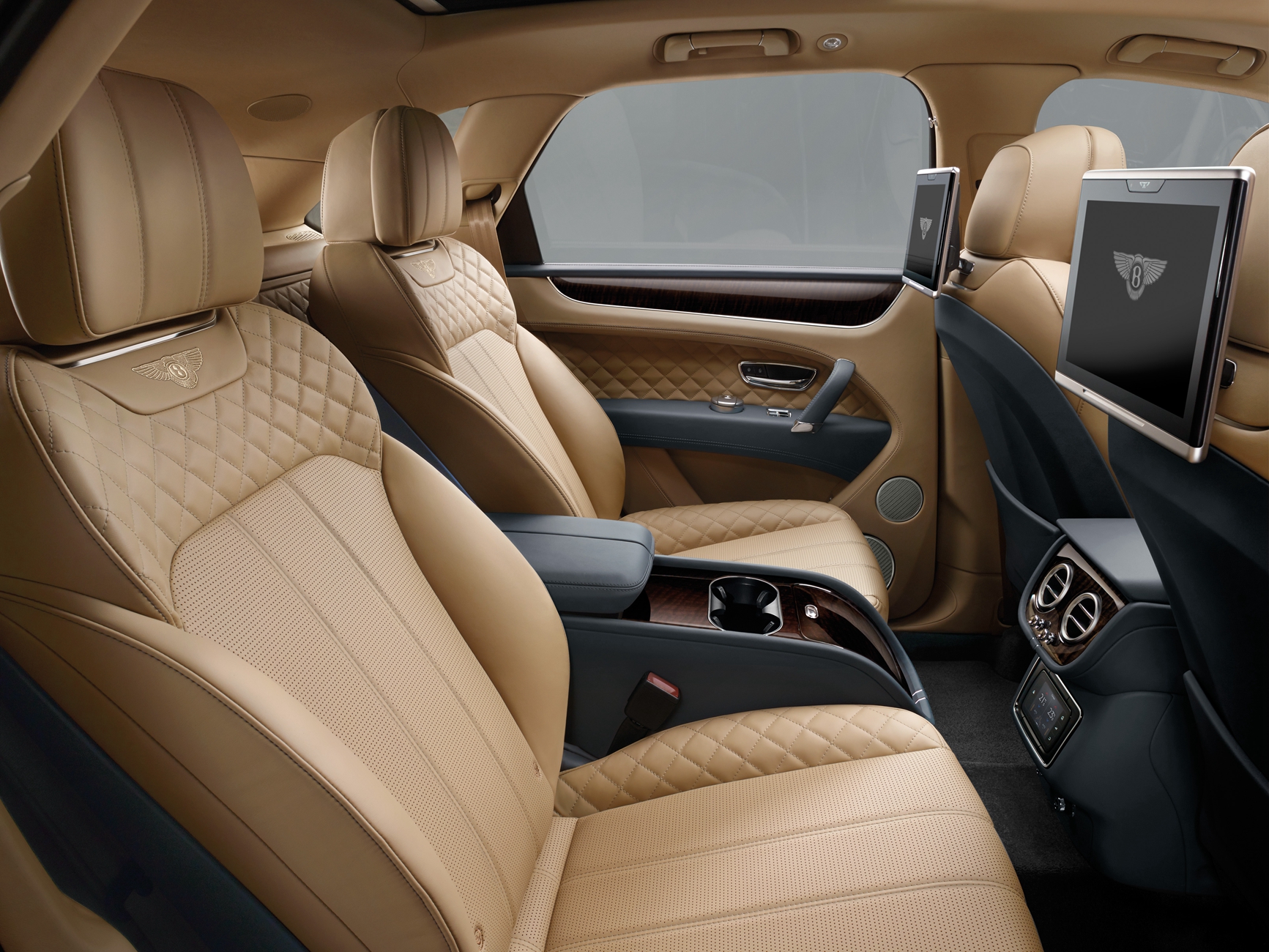

Bentayga后座配備了既奢華又先進的信息娛樂系統。
